Accessories for Dry Block Calibrators
Ideal for thermocouple and RTD sensors calibration.
Possibility of customization to meet the customer needs.
External dimensions (mm): Ø 35 x 160.

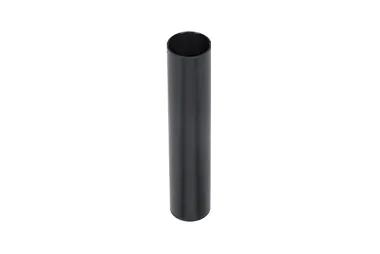

Black Body Insert - "NL" family
Order Code: 06.04.0072-00
Includes an anodized container insert.
Special black bottom and walls, resulting in a high emissivity black body cavity.
Suitable for infrared thermometers calibration.
External dimensions (mm): Ø 35 x 168.
Stirred Liquid Kit - "NL" family
Order Code: 06.09.0029-00
Ideal for calibration of glass thermometers.
Includes a magnetic stirrer, a sensor guide, steel container with lid.chamento.

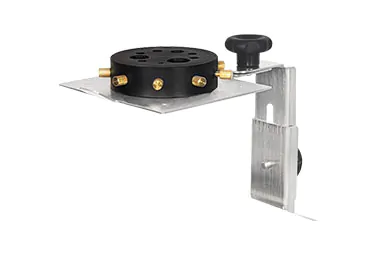

Adjustable Sensor Guide
Order Code: 06.09.0006-00
Ideal for supporting the calibration of thermoresistive and thermocouple sensors with height adjustment ranging from 50 to 150 mm.
Available models for T (Industrial Standard), TE (Industrial Economic), and TA (Industrial Advanced) sensor lines.
Sensor Guide - "NL" family
Order Code: 02.22.0082-00
Proper for TC and RTD support during calibration.
Thermal Shield
Order Code: 02.22.0125-21
Ideal for use with High Temperature dry block (T-650P and T-1200P, for instance), in order to reduce the effects of high temperature in the sensor sheaths and specially in the thermocouples junctions.

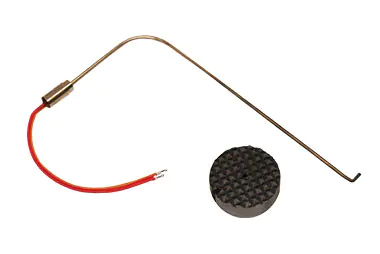

Black Body Insert for
T-660PL + Thermocouple
Order Code: 06.04.0097-00
Effective target of 35 mm diameter with a special geometry.
Consists of a high emissivity black body cavity.
Supplied with thermoucouple.
Suitable for infrared thermometers calibration.
External dimensions (mm): Ø 35 x 13.

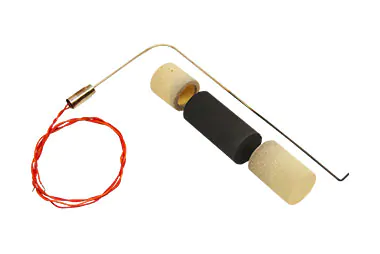

Black Body Insert for
T-1200P
TA-1200P + Thermocouple
Order Code: 06.04.0074-00
Insert of special geometry and 20 mm effective target diameter, made in refractory material.
Consists of a high emissivity black body cavity.
Supplied with thermocouple.
Suitable for infrared thermometers calibration.
External dimensions (mm): Ø 31,5 x 70.

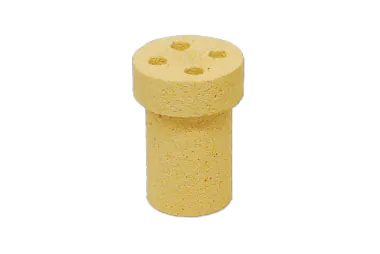

Superior Thermal Insulation for
T-1200P / TA-1200P
Order Code: 02.22.0126-21
Cilindrical shape insulation.
Mounted at the top of the insert.
Must be supplied with holes diameters similar to the insert used.

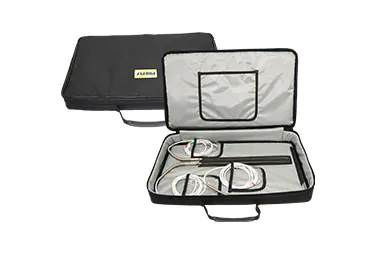

Probe Carrying Case
Order Code: 06.01.0017-00
Ideal for transport and storage of temperature probes for use with the calibrators.

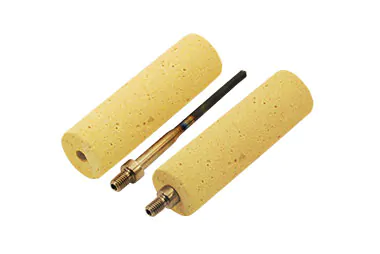

Inferior Thermal Insulation for T-1200P / TA-1200P
Order Code: 02.22.0127-21
Cilindrical shape Insulation.
Mounted at the bottom of the insert.
Supplied with grounding pin.
