Solid Insert
Advanced Thermal Baths - TA Series (Advanced Industrial Line)
Temperature generation range from -100 B0C to 1200 B0C, with dry block, liquid, and blackbody options. Supports reading of thermocouples, RTDs (resistance temperature detectors), transmitters, and thermostats, and also provides HART®. device configuration, calibration report generation, and data acquisition.

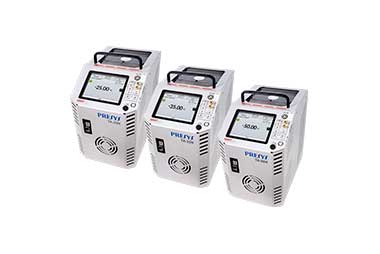

They reach -25 °C (TA-25N), -35 °C (TA-35N) and -50 °C (TA-50N) in an ambient temperature of 23 °C.
Optional temperature measurement and control by external probe.
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
HART® Communication Protocol, data logger mode, Ethernet and USB interface.
3 in 1: dry block, stirred liquid bath and black body source for infrared pyrometers.

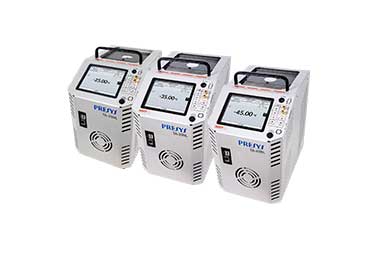

Temperature range: from -25 °C to 155 °C (TA-25NL) and -45 °C to 140 °C (TA-45NL) in an ambient temperature of
23 °C.
Calibration volume of 35 x 160 mm.
Optional temperature measurement and control by external probe.
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
HART® Communication Protocol, data logger mode,Ethernet and USB interface.

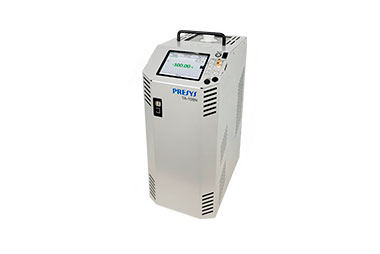

TA-100N – Precision Cooling from -100 °C with Full Automation
The TA-100N is a cutting-edge dry block temperature calibrator designed to meet the highest standards of accuracy, reliability, and versatility in ultra-low temperature calibration. With a temperature range from -100 °C to 40 °C, it delivers outstanding thermal stability, axial and radial uniformity, and a fast heating/cooling response — all in a compact and robust design.
The TA-35NLL / TA-45NLL and TA-300PLL Thermal Baths have been meticulously developed to meet the demands of applications requiring a thermal medium with a large volume.
The calibration of your sensors has never been so easy with the TA user-friendly
interface on its large touch screen. You can get now a calibration test report at
your finger tip without installing any specific software.

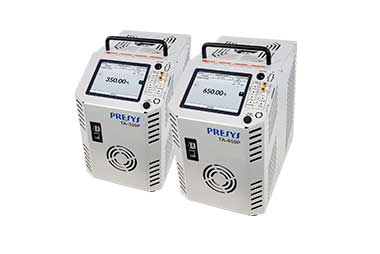

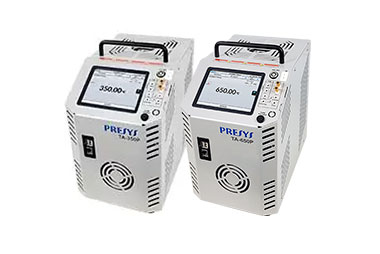

Temperature range: from ambient temperature to 350 °C and 650 °C (TA-350P and TA-650P, respectively), with 0.01 °C resolution.
Optional temperature measurement and control by external probe.
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
HART® Communication Protocol, data logger mode, Ethernet and USB interface.
Temperature range: from 50 °C to 1200 °C, with 0.1 °C resolution.
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
HART® Communication Protocol, data logger mode, Ethernet and USB interface.
The TA-1200PLAB is a deep immersion high temperature furnace, offering the best-in-class uniformity and stability, that will reduce drastically the uncertainties of your thermocouples calibrations. With 5.7″ Touchscreen Display. Operating Range: 50 to 1200 °C.
Dry Block Thermal Baths - TE Series (Economical Industrial Line)
Compact calibrators designed for field or laboratory use. A simplified and cost-effective product line, developed to meet your needs precisely.

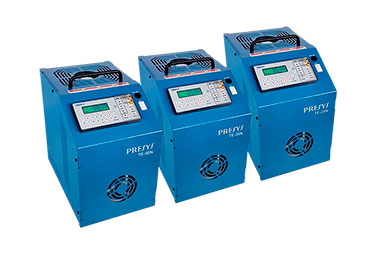

The TE-25N, TE-35N and TE-50N Dry Block Calibrators perform functions that would require three different types of instruments: dry block calibrator, standard thermometer and calibrator for TCs, RTDs, mA, mV, ohms and thermoswitches.

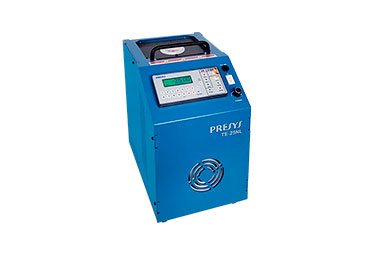

The TE-25NL, TE-35NL and TE-45NL models are economical thermal bath line calibrators that have a large calibration volume. This line is ideal for calibrating special sensors that cause greater immersion depth.
Dry Block Calibrator Economic Line.

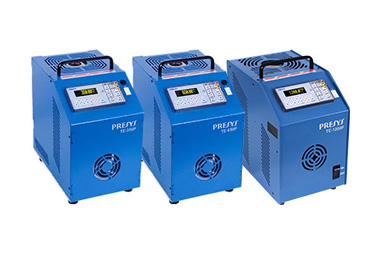

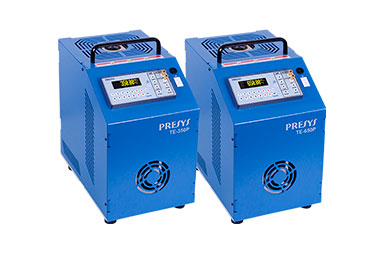

The TE-350P, TE-650P and TE-1200P Dry Block Calibrators perform functions that would require three different types: a dry block, standard thermometer and a calibrator for RTDs, TCs, mA, mV, ohms and thermoswitches.
Dry Block Thermal Baths - T Series (Standard Industrial Line)
Compact calibrators designed for field or laboratory use, featuring excellent thermal uniformity and stability. Perform automatic calibrations with or without the use of a computer.

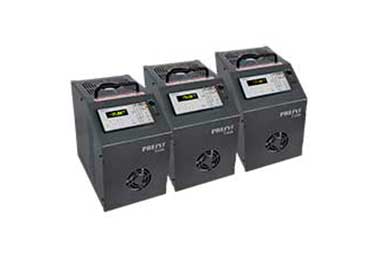

They reach -25 °C (T-25N), -35 °C (T-35N) and -50 °C (T-50N) in an ambient temperature of 23 °C.
Optional temperature measurement and control by external probe.
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.

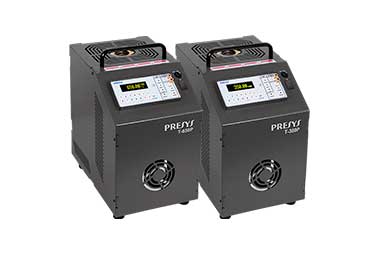

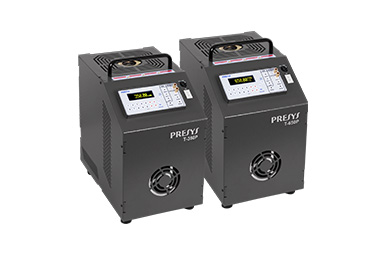

Temperature range: from ambient temperature to 350 °C and 650 °C (T-350P and T-650P, respectively), with 0.01 °C resolution.
Optional temperature measurement and control by external probe (T-350P and
T-650P).
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
Models with larger volume insert, agitated liquid option and black body.
Multifunctional: Stirred Liquid Bath, dry block, Infrared and Surface calibration (T-25NL and T-45NL only) and black body source for infrared pyrometers.
Temperature range: from -25 °C to 155 °C (T-25NL) and -45 °C to 155 °C
(T-45NL) in an ambient temperature of 23 °C.
From ambient temperature to 700 °C
(T-700PL).
Calibration volumes of 35 x 160 mm
(T-25NL, T-45NL) and 36 x 155 mm
(T-700PL).
Optional temperature measurement and control by external probe.
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
Multifunctional Models, Dry Block + Infrared
Dry block and black body inserts.
Horizontal mounting suitable for infrared pyrometer calibration.
Generates temperatures from -35 °C (in ambient temperature of 23 °C) to 140 °C.
Input for mA, RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
Dry block and black body inserts.
Horizontal mounting suitable for infrared pyrometer calibration.
Generates temperatures from ambient to 650 °C.
Input for mA, RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
Dry block and black body inserts.
Horizontal mounting suitable for infrared pyrometer calibration.
Generates temperatures from 50 °C to 1200 °C.
Input for mA, RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.

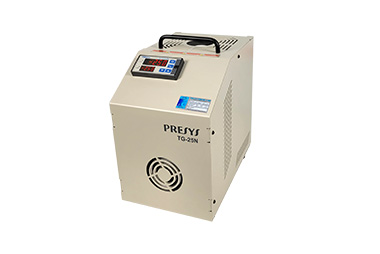

Dry Block Temperature Generators - TG Series
The TG Thermal Bath Series delivers high thermal performance, offering excellent temperature stability and uniformity across the metallic block.
Precision, stability, and reliability in temperature calibration
The Presys TG Series Thermal Baths are designed to meet the highest demands in temperature sensor calibration, delivering outstanding thermal stability, block temperature uniformity, and high performance across the entire operating range.
