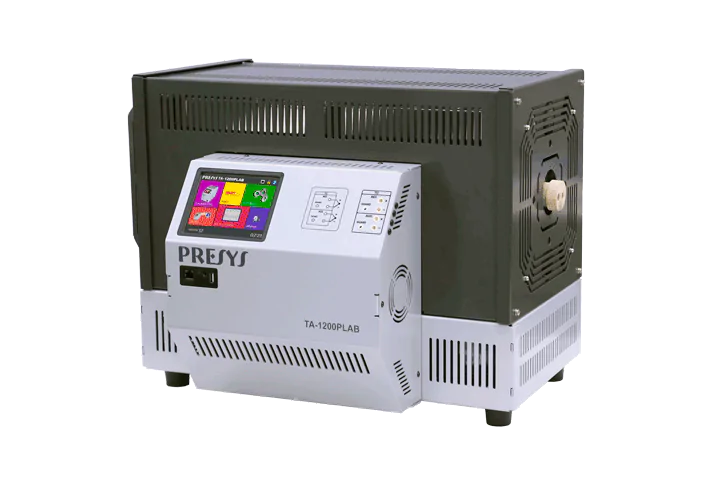

Reference High Temperature Furnace

TA-1200PLAB

The TA-1200PLAB is a deep immersion high temperature furnace, offering the best-in-class uniformity and stability, that will reduce drastically the uncertainties of your thermocouples calibrations.

  • Operating Range: 50 to 1200 ºC.
  • Radial Homogeneity: ±0.10 ºC @ 1100 ºC.
  • Axial Homogeneity: ±0.20 ºC @ 1100 ºC.
  • Stability: ± 0.10 ºC @ 1100 ºC.
  • Resolution: 0.01 ºC.
  • Immersion: 300 mm.
  • Measurement Zone: 100 mm.
  • Noise reduction design of the heater core.
  • External reference thermocouple input.
  • Deviation Function for TC test sensors.
  • Ethernet, Wireless, USB, TCP/IP – Built-in Web Server.
  • Build in VNC for remote access and technical support.
  • Meets the AMS2750E recommandations.
  • Easy LabView interface with the WebAp
  • Best-in-class temperature stability and uniformity.
  • ± 0.3 °C Axial uniformity over 100 mm.
  • 3 zones control.
  • Improve uncertainty of thermocouples calibrations.

The TA-1200PLAB Calibrator generates temperature values in the block or insert from 50 to 1200 °C. Its high accuracy and homogeneity is due to the fact that TA-1200PLAB has three control zones, allowing better distribution of temperature throughout the block and ensuring a better radial and axial uniformity through the extension of the 100 mm of measurement zone. It has two inputs for mV and for various thermocouples types, including Au-Pt, with deviation function configurable. It is available in two mounting versions: horizontal and vertical. TA-1200PLAB incorporates concepts of automatic calibration with calibration management softwares, especially with the Isoplan® Software, such as issuing reports and certificates, task management, calibration data organization and archiving etc.
