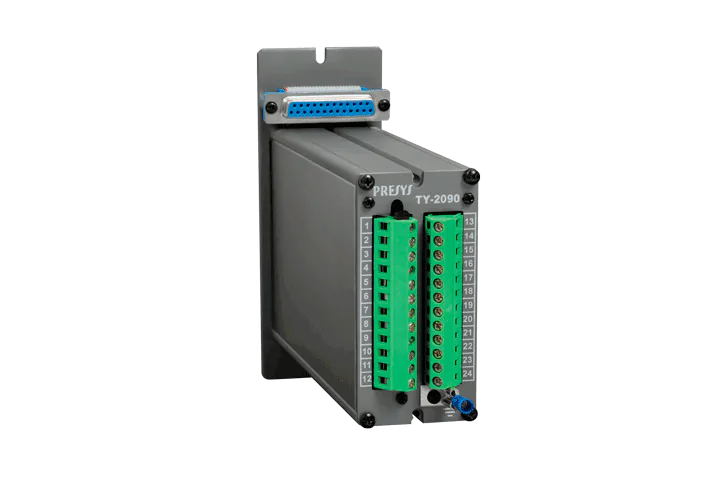

Universal Smart Transmitter

TY-2090
TY-2090-F

Transmitter and alarm monitor in a single instrument.
Many optional modules are available:
- Up to two analog output modules of 4-20mA, 1-5Vdc, 0-10Vdc.
- Up to four SPDT and SPST relay alarm modules.
- Water-proof front-panel.
- RS-232 or RS-422/485 communication.
Two universal standard inputs for RTD, thermocouples, 0-55mV, 4-20mA, 1-5Vdc, and 0-10Vdc. Specific models available for two frequency input signals up to 30kHz, from 300mVpp to 30Vpp.
Their robust construction make them tough enough for the most hostile environment.
Power supply from 75 to 264Vac, 50/60Hz. 24Vac/dc, and 12Vdc when specified.
Linearization of RTD, and thermocouple; square root extraction of the voltage and current inputs.
Fully configurable by front-panel push-buttons.
Fitting up in DIN rails or surface.
Configurable by serial communication or through the portable programmer.
Configuration stored in non-volatile memory.
High accuracy.
