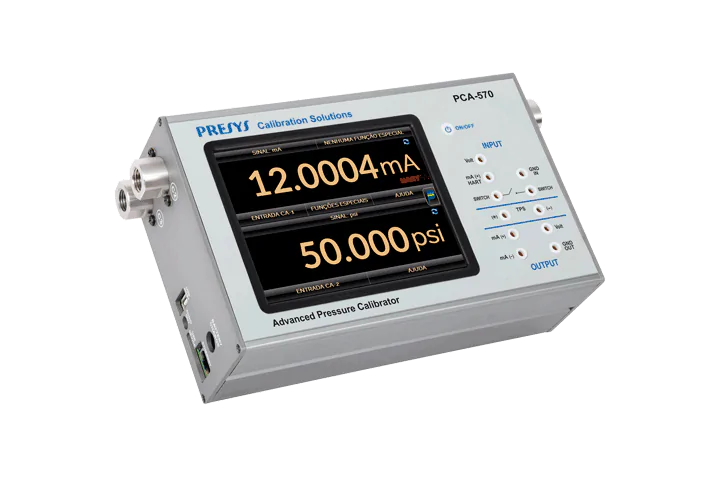

PCA-570 is an advanced pressure calibrator. It brings together multiple software, hardware, computer, internet and metrology resources, in order to increase productivity when performing calibrations.

• Up to four optional pressure modules from 250 mmH?O to 10,000 psi, gauge or absolute pressure, including vacuum and differential pressure between any pair of outlets.
• Measures and generates mA and volts with accuracy to 0.02% of full scale. It has an input for a temperature sensor.
• 30 Vdc power supply for two-wire transmitters.
• High visibility touchscreen display with user-friendly interface.
• Compact, portable, powered by rechargeable batteries with great autonomy for field use.
• Enables complete configuration of HART® devices. Compatible with DD configuration files registered with the FieldComm Group.
• Data logger function for all input and output types.
• Documentation capability.
• Creation of automatic calibration procedures.
• Ethernet, Wi-Fi, pen-drive, Hart, USB Host/Device connection.
