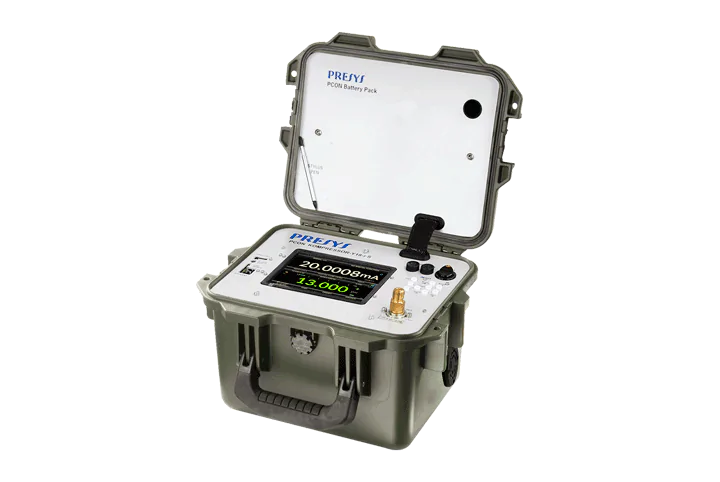

PCON-Y18 Field Automatic Pressure Calibrator

The PCON-Y18 FS provides a complete solution for the test and calibration of your pressure.

Faixas desde 1 bar até 70 bar

Portáteis para uso em campo

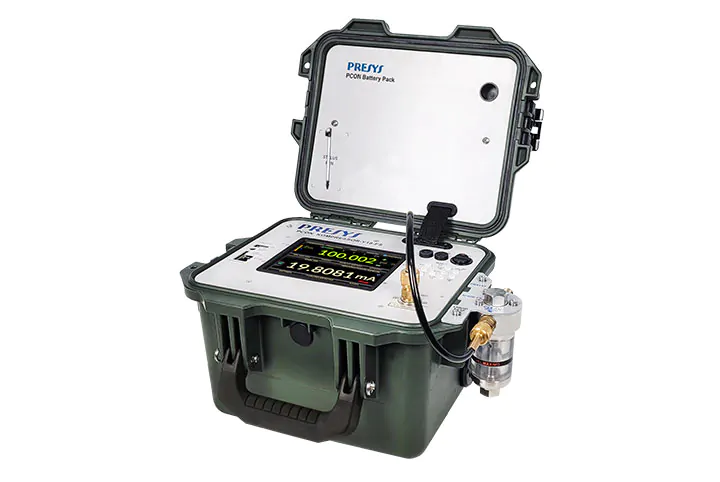

Desde 1 bar até 25 bar

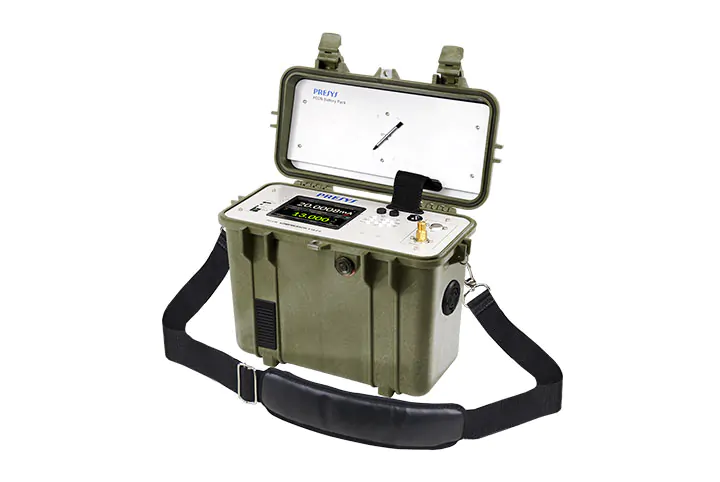

Modelos para 30 até 70 bar

No extra software or computer is needed to generate the calibration test report on the fly and the data are tamper proofed in accordance with 21 CFR Part 11.

PCON-Y18 FS is a real documenting automated calibrator to calibrate more efficiently your instruments in the industrial areas that will become quickly an indispensable tool in your day to day work allowing real gains of productivity.

  • 5.7″ Touch Screen Color Display. Dual Core 1 GHz processor and Flash memory of 16 GB.
  • Easy Labview interface with the WebApi Commands.
  • Ethernet, Wi-Fi via USB/Ethernet router adapter, Serial USB with SCPI protocol.
  • Integrated WebServer, client-server technology to pick-up tasks on remote server.
  • Host/Device USB port.
  • HART® Communication standard.
  • Pressure switch automatic testing.
  • Input Current: -1 to 24.5 mA, ± 0.01% FS.
  • Transmitter Power Supply: 24 Vdc regulated.
  • Leak test.
  • Temperature compensated accuracy from 0°C to 50°C.
  • User selectable pressure unit: Pa, hPa, kPa, MPa, bar, mbar, psi, mmHg@0°C,cmHg@0°C, mHg@0°C, inHg@0°C, inH₂O@4°C, mmH₂O@4°C, cmH₂O@4°C, mH₂O@4°C, mmH₂O@20°C, cmH₂O@20°C, mH₂O@20°C, kg/m², kg/cm², mtorr, torr, atm, lb/ft².
  • Easy Labview interface with the WebApi Commands.
  • Control speed: 20 s (for 10 % FS pressure increase in a 50 ml test volume).
  • Integrated electric pump for positive and negative pressure generation.
