Process Dual Counters
DMY-2030-TOT-FCS
DMY-2031-FCS
- Applied to count partw and boxes over straps or pulses from any sensors.
- Up to four SPDT and SPST digital output modules.
- RS-232 or RS-422/485 communication.

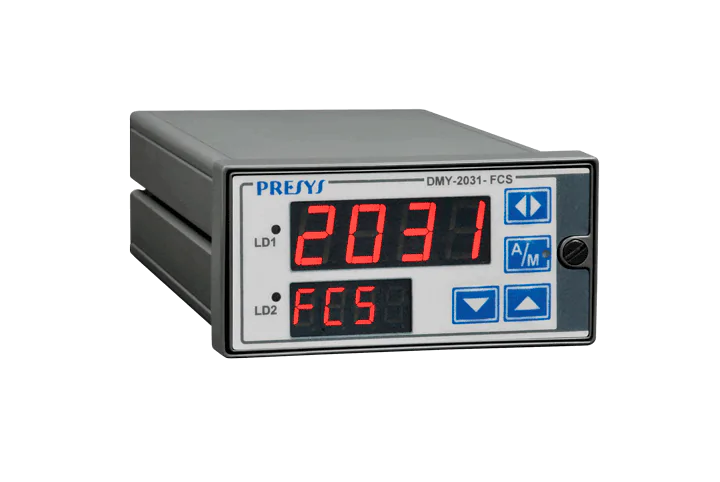

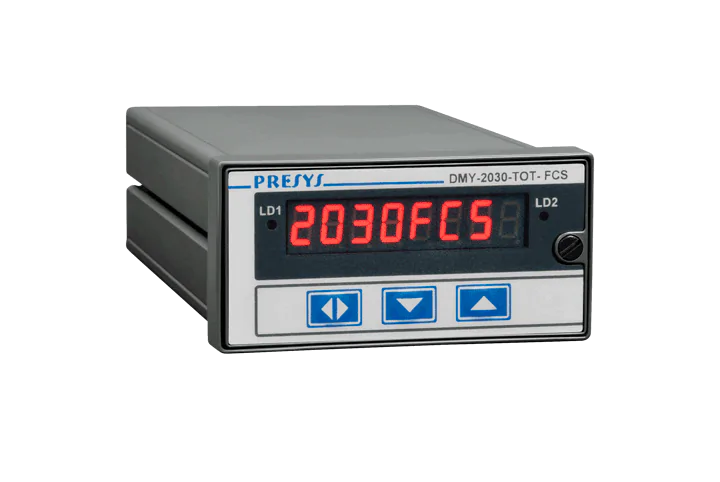

- One display configurable up to 8 digits (DMY-2030-TOT-FCS) or two 14mm and 9mm red-led displays with 4 digits (DMY-2031-FCS).
- Its robust construction make it tough enough for the most hostile environment.
- Power supply from 75 to 264Vac, 50/60Hz. 24Vac/dc, and 12Vdc when specified.
- Water-proof front-panel.
- Fully configurable by front-panel push-buttons.
- Configuration stored in non-volatile memory.
