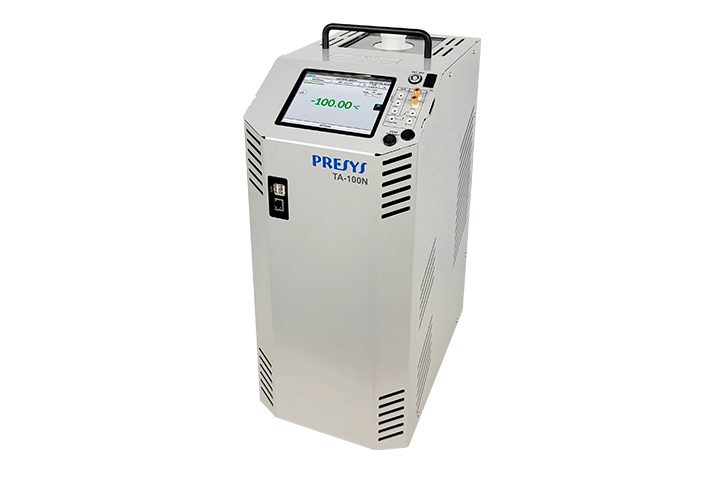

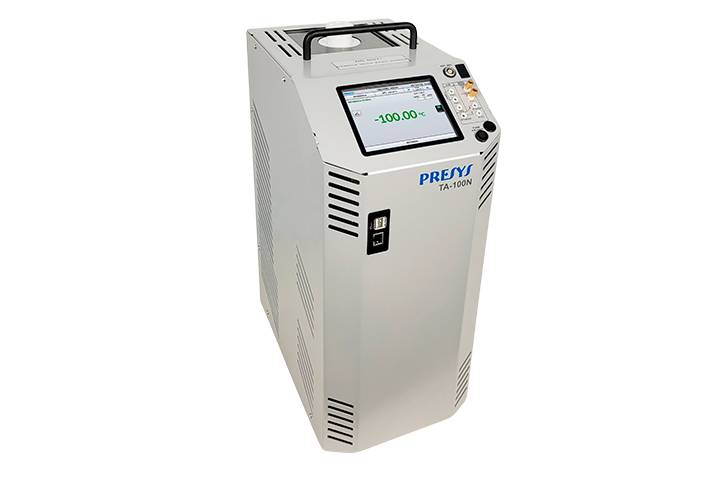

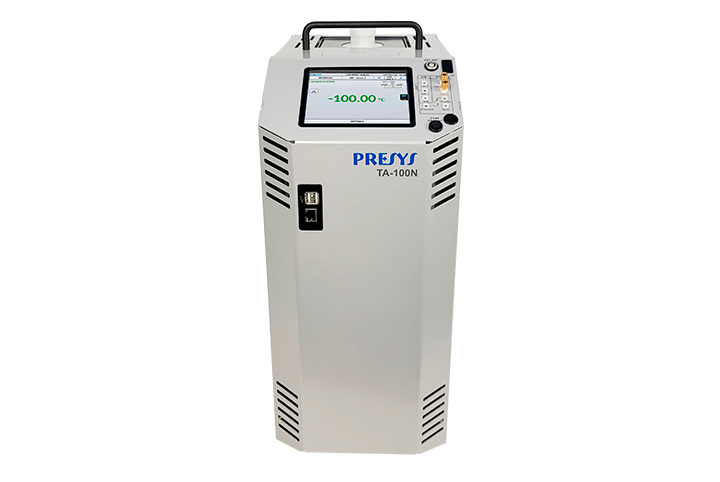

TA-100N – Precision Cooling from -100 °C with Full Automation
The TA-100N is a cutting-edge dry block temperature calibrator designed to meet the highest standards of accuracy, reliability, and versatility in ultra-low temperature calibration. With a temperature range from -100 °C to 40 °C, it delivers outstanding thermal stability, axial and radial uniformity, and a fast heating/cooling response — all in a compact and robust design.

Equipped with advanced connectivity options such as Ethernet, Wi-Fi (via USB adapter), and USB serial interface, the TA-100N is ready for Industry 4.0 integration and supports HART® and Profibus® protocols (optional), allowing seamless communication with smart field instruments.

Its intuitive touchscreen interface and internal regulated 24 Vdc power supply for loop-powered transmitters make operation efficient and user-friendly. The calibrator supports automatic calibration routines, even without the use of a computer, and generates ISO/IEC 17025-compliant calibration certificates.

Main Features:
Ultra-low temperature calibration: -100 °C to 40 °C

• ±0.01 °C stability and ±0.1 °C display accuracy
• Touchscreen with a clear and intuitive interface
• Communication via HART®, Profibus®, Ethernet, USB
• Internal mA input and 24 Vdc source for transmitters
• Inputs for external RTDs, thermocouples, and switches
• Wide range of interchangeable inserts available
• Compliant with ISO/IEC 17025 calibration standards

Push the limits of cold. Calibrate with confidence. Choose Presys.
