Dry Blocks for Temperature Calibration

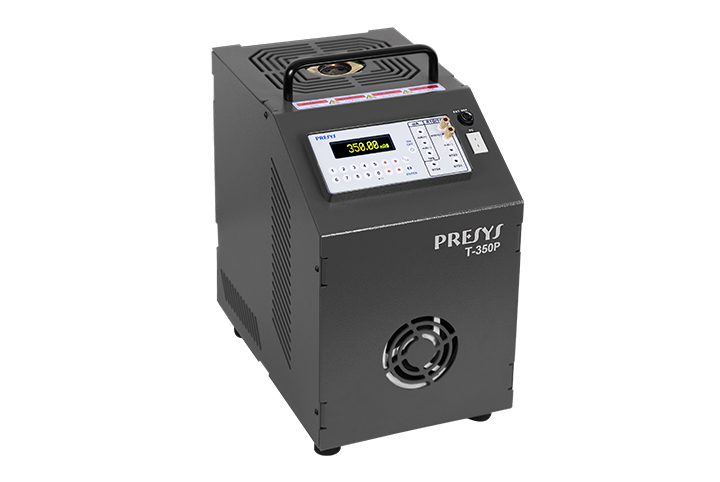

T-350P

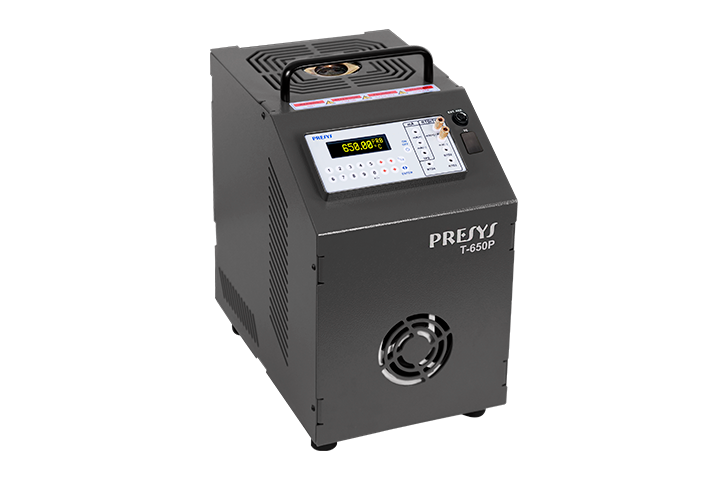

T-650P

The T-350P and T-650P Dry Block Calibrators perform functions that would require three different types: a dry block, standard thermometer and electronic calibrator measuring signals generated by RTDs, thermocouples, thermoswitches and mA generating sources.

  • The T-350P and T-650P model generate from ambient temperature to 350 °C and 650 °C respectively with a resolution of 0.01 °C.
  • Using a external thermometer such as Presys Super thermometer PT-511, the accuracy up to ± 0.05 °C.
  • Stability of ± 0.05 °C.
  • Input for RTD, thermocouples and thermoswitches.
  • Internal regulated 24 Vdc power supply and mA input for 2-wire transmitters.
  • External reference thermometer not necessary.
  • Completely automatic calibration with or without the use of a computer.
  • Documenting capabilities: connection with computer and ISOPLAN calibration software.
  • Portable, compact, with carrying case and interchangeable inserts.
