Pressure
The PCON Kompressor-Y18 provides a complete solution for the test and calibration of your pressure.
PCON-Y18 is a real documenting automated calibrator to calibrate more efficiently your instruments in the industrial areas that will become quickly an indispensable tool in your day to day work allowing real gains of productivity.
The PCON Kompressor-Y18 provides a complete and autonomous solution for test and calibration on the field of your pressure gauges, transmitters and pressure switches.
The PCON-Y18-LP provides a complete solution for the test and calibration of your low pressure and differential gauges, transmitters and switches.
PCA-570 is an advanced pressure calibrator. It brings together multiple software, hardware, computer, internet and metrology resources, in order to increase productivity when performing calibrations.
Calibrator with Pressure Control up to 3000 psi (pneumatic).
Up to three extra inputs for pressure reading.
Measures mA, mV, Volts, Ohms and RTD signals.
Full-Hart Configurator.
Ethernet, Wi-Fi, Pen-drive, Hart, Modbus and USB Host/Device.
Specially developed for use in testing and calibration of pneumatic instruments.
Available in Desktop, Rack Mount and Field Service versions.
Presys Compressors make Nitrogen Bottles unnecessary!
The MPYA External Digital Pressure Module features small and compact dimensions used with Advanced Line calibrators for pressure reading such as MCS-XV or PCON Kompressor-Y18. Thus, MPYA allows you to expand the number of pressure ranges available on each calibrator as well as share its automatic calibration capabilities and documentation.
Measures and generates mA, mV, Volts, Ohms, RTD, TC, Hz.
Up to four pressure sensors of ranges from 250 mmH₂O to 10,000 psi.
Full-Hart Configurator.
Ethernet, Wi-Fi, Pen-drive, Hart and USB Host/Device.
Operates all instrumentation signals: electrical, temperature, frequency and pressure.
Up to four pressure sensors of ranges from 250 mmH₂O to 10,000 psi.
Gage or absolute pressure, including vacuum and differential between any pair of sensors.
Input for temperature probe.
Documenting capability.
For use in hazardous areas.
Certified for Group IIC, Zone 0 / Ex ia IIC T4 Ga.
Up to four pressure sensors of ranges from 250 mmH₂O to 10,000 psi.
Documenting capability.
Up to four optional pressure modules from 250 mmH?O to 10,000 psi, gauge or absolute pressure, including vacuum and differential pressure between any pair of outlets.
Up to four optional pressure modules from 250 mmH?O to 10,000 psi, gauge or absolute pressure, including vacuum and differential pressure between any pair of outlets.
Measures and generates mA, mV, volts, ohms, RTD, TC and Hz.
For use in 19″ rack. Powered fron 100 to 240 Vdc, 50/60Hz.
Full colour touchscreen display provides easy-to-read data
Ideal for use on Workbench.
Measures and generates mA, mV, Volts, Ohms, RTD, TC, Hz.
Full-Hart Configurator.
Ethernet, Wi-Fi, Pen-drive, Hart and USB Host/Device.
Adapters, conectores, hoses, plugs, supports, low pressure stabilizer kit and others.

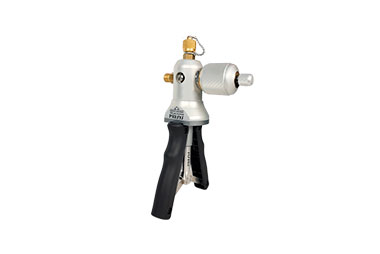

Pressure pump for calibration of transmitters, gauges etc.
Provided with fine adjustment for the entire pressure range.
Compatible with the PC-507 and others.
Ideal for use in conjunction with Presys Calibrators, it offers quick pressurization with little manual effort, making calibration work easier. It can also provide negative pressure or vacuum.
