Stirred Liquid

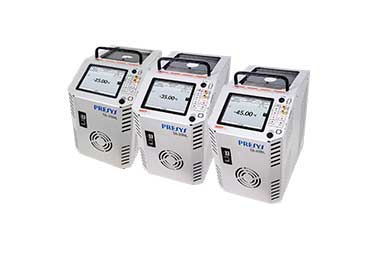

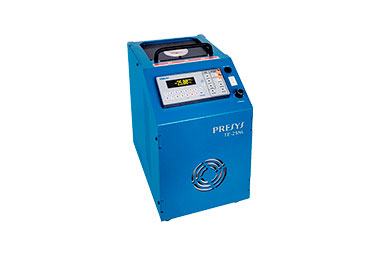

The TE-25NL, TE-35NL and TE-45NL models are economical thermal bath line calibrators that have a large calibration volume. This line is ideal for calibrating special sensors that cause greater immersion depth.
3 in 1: dry block, stirred liquid bath and black body source for infrared pyrometers.
Temperature range: from -25 °C to 155 °C (TA-25NL) and
-45 °C to 140 °C (TA-45NL) in an ambient temperature of 23 °C.
Calibration volume of 35 x 160 mm.
Optional temperature measurement and control by external probe.
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
HART® Communication Protocol, data logger mode,Ethernet and USB interface.

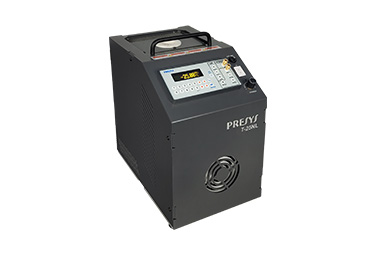

Multifunctional: Stirred Liquid Bath, dry block, Infrared and Surface calibration (T-25NL and T-45NL only) and black body source for infrared pyrometers.
Temperature range: from -25 °C to 155 °C (T-25NL) and -45 °C to 155 °C (T-45NL) in an ambient temperature of 23 °C.
from ambient temperature to 700 °C (T-700PL).
Calibration volumes of 35 x 160 mm (T-25NL, T-45NL) and 36 x 155 mm (T-700PL).
Optional temperature measurement and control by external probe.
Input for RTD, thermocouples and thermoswitches.
Automatic calibrations and documenting capabilities.
The T-35NLL generates temperatures from -35 ºC to 140 ºC.
Stirred Liquid or Dry Block.
Black Body or Superficie insert available.
Extra large calibration volume: 170 mm.
High Stability, Uniformity and Accuracy.
Temperature measurement and control by external probe with Callendar-Van Dusen coefficients.
Resolution of 0.01 °C.
Stability better than ± 0.01 °C.
Have input for thermocouples, resistance thermometers and thermoswitches.

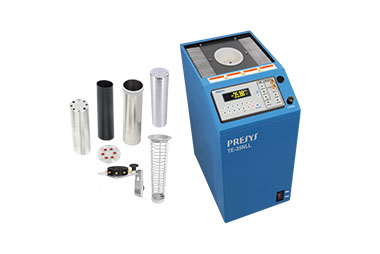

Portable Stirred Liquid Bath and Dry Block Calibrator with Large Calibration Volume
The TE-35NLL generates temperatures from -35 ºC to 140 ºC, and the TE-300PLL from ambient temperature to 300 ºC.

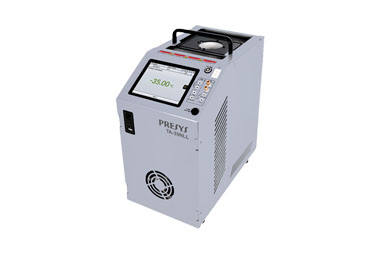

The TA-35NLL / TA-45NLL and TA-300PLL Thermal Baths have been meticulously developed to meet the demands of applications requiring a thermal medium with a large volume.
