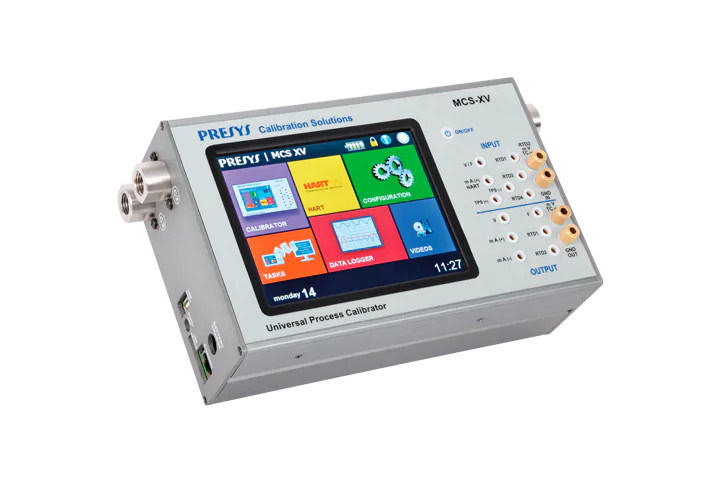

• Measures and generates mA, mV, Volts, ohms, RTD, TC, and Hz with accuracy 0.01% up to full scale.
• Easy LabView interface with the WebApi commands.
• Up to four optional modules of 250 mmH₂O pressure to 10,000 psi. It has the barometric reference (optional) for absolute pressure indication.
• Hart Full Configurator (optional). Compatible with DD configuration files recorded in FieldComm Group.
• 24Vdc power supply for two-wire transmitter. internal 250 ohms resistor configurable.
• Documentation capability. Automatic calibration tasks can be created or executed with or without the use of computers.
• Calibration Reports issued directly to USB printer or PDF file.
• Data logger function for data acquisition and display in graphical format.
• Touchscreen display with high visibility friendly interface.
• Compact, portable, powered by rechargeable batteries for field use.
• Also available in versions Desktop (DT) and 19″ Rack Mounting (RM).
• e-Connected: Ethernet, Wi-Fi (optional), Pen-drive, Hart and USB Host/Device.

*Check availability
